✨ Bespoke Industrial PC Your Wise Choice! View product catalog
Wisemaker Panel PC Series offers flexible industrial computing solutions with customizable configurations to meet diverse application needs. Supporting Intel® J1900 as well as Core™ i3/i5/i7 CPUs from 6th to 14th generation, these fanless panel PCs are engineered for stable 24/7 operation. Screen sizes are available in standard options ranging from 10.4” to 21.5”, with additional customization options for specific requirements.
From smart factories and production lines to outdoor kiosks and control systems, our panel PCs can be customized with wide voltage input (9–36V), Full waterproof, sunlight-readable displays, and various mounting options including VESA, panel, and open-frame. Optional features like Wi-Fi/BT/4G/5G, NFC, barcode scanner, or stainless steel housing are also available for mission-critical applications.
| Description | Product Name | 10.4"~21.5" Fanless Embedded Touch Panel PC |
| Display | Model Number | TPC310~321/TPC410~421 (TPC310 Series for Resistive touch; TPC410 for Capactive touch) |
| Screen size(inch) | TFT-LCD 10.4″– 19″ = 4:3 (H:V) / 15.6" - 21.5″ = 16:9(H:V) | |
| Physical resolution | 1024*768;1280*1024;1920×1080 | |
| Luminance (cd/m2) | 250 / 350 / 450 / 500 / Or custom 1000cd | |
| Viewing Angle (H-V) | 85/85/85/85;89/89/89/89 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime (hrs) | LED / 30,000; LED /50,000 | |
| TouchPanel | Touch Type | 5-wire resistive touch Or Projected Capacitive 10-Point Multitouch |

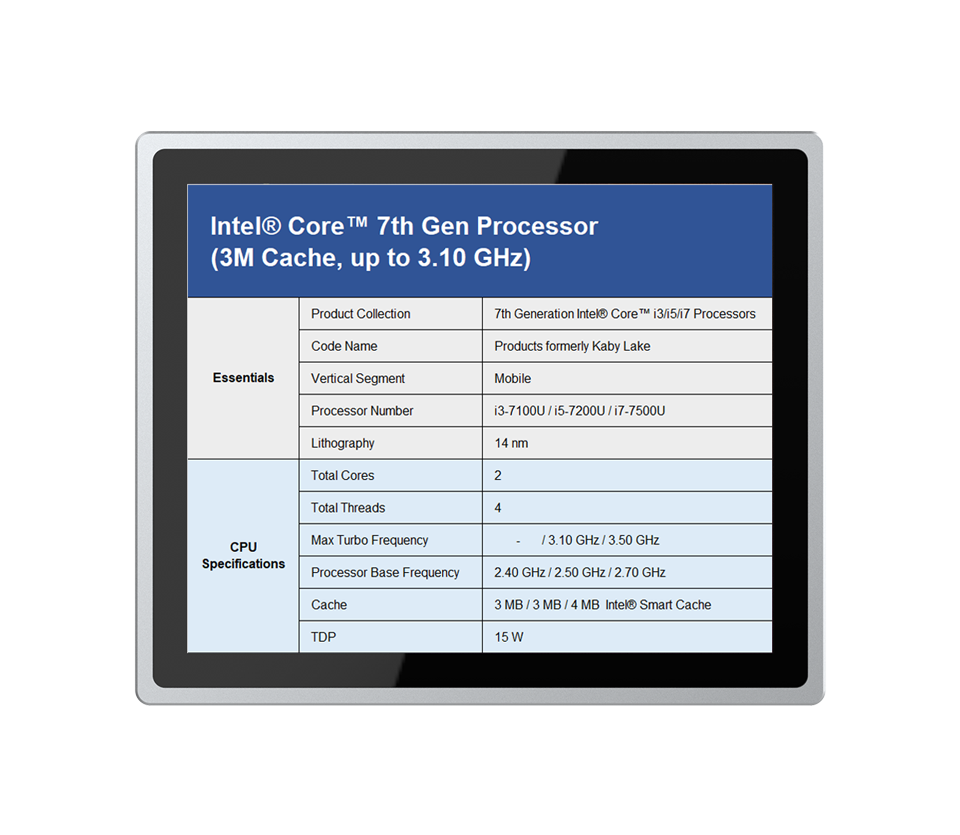

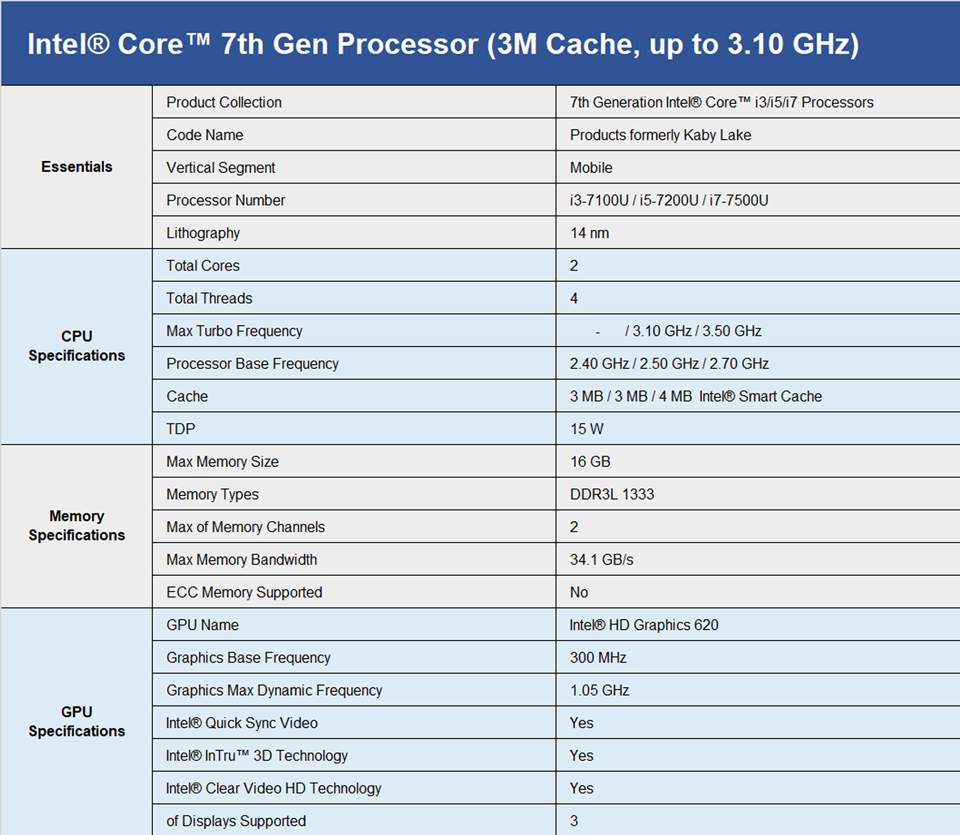

| System | CPU Option | Intel Core Kabylake Gen. 7th Option: i3-7020U/7100U; i5-7200U; i7-7500U |
| RAM/Memory | 4GB standard, 8GB/16GB/64GB | |
| Storage | 64GB SSD standard,128GB,256GB,512GB SSD,1TB SSD | |
| Ethernet/LAN | 1x LAN or 2x LAN 1000Mbit RJ45 Ports | |
| Operating System | Ubuntu; Win7/8/10/11; Linux; 32Bit/64Bit | |
| I/O Ports | USB Ports | 4x USB version or 6x USB version |
| Serial Ports | 2x COM or 6x COM ports Full-PIN (RS232 default) | |
| Optional COM | 1X RS422 /1X RS485 COM | |
| VGA | 1x VGA Connector | |
| HDMI | 1x HDMI Connector | |
| Audio | MIC-In, EAR-Out | |
| Power | 100-240V ACDC active switching adaptor; 1x 12V DC-In | |
| Optional WI-Fi | WIFI includes bluetooth (two-in-one) | |
| Operating Temperature | -10～+60°C | |
| Storage Temperature | -20～+70°C | |
| Protect | IP65/IP66 Front panel; Withstanding water, moisture, dust and vibration | |
| Construction | Aluminum Front bezel + cooling cover + metal enclosure |
Mounting support:
Standard Accessories:
- Power Adapter x1
- Mounting Brackets / Screws for panel mount
Optional Accessories:
- Wall Mount Kit
- Desktop Stand
- External Fan Kit
- Stylus Pen
Optional Functions:
- TTL / GPIO / CAN Communication Support
- Optional 4G LTE / 5G Connectivity
- Wi-Fi / Bluetooth / RFID / NFC Modules
- Barcode Scanner Integration (Optional)
- High Brightness Outdoor Display
- Special Touch Screen Options (Anti-UV/Anti-Glare / Anti-Fingerprint / AR)
Environmental Options:
- Wide Temperature Range Support
- Full IP65 / IP66 / IP69K Waterproof Solutions Available
Compliance & Certification:
- CE, FCC, RoHS Certified
- MIL-STD-810G Available upon request
Yes! We specialize in fully customized industrial computing solutions, including high-brightness outdoor displays, fully waterproof IP65/IP66 Panel PCs & monitors, optical bonding technology for enhanced clarity, and various mounting options. Whether you need a specific CPU, RAM, storage, or enclosure design, we can tailor the product to fit your application.
Our industrial PCs stand out due to:

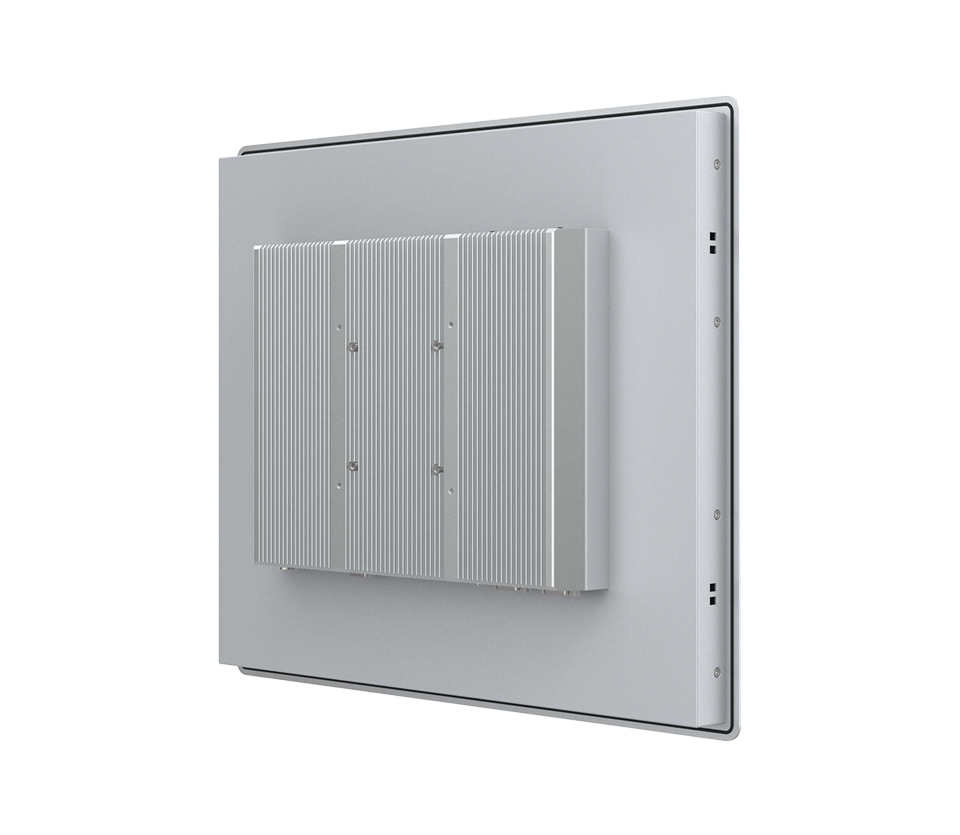

✔ Advanced Cooling System – Fanless design with aluminum extrusion ensures efficient heat dissipation, ensuring stable operation and extending the device’s lifespan.
✔ Durability & Protection – IP65/IP66-rated waterproof and dustproof designs for harsh environments.
✔ Optical Bonding Technology Custom Option – Eliminates air gaps between the touch panel and LCD, preventing fogging and improving display clarity in humid or rainy conditions.
✔ Customization Flexibility – We offer custom connectors, I/O ports, screen sizes, touch glass cover with anti-UV/AG/AF solutions etc.
Our industrial computers are widely used in factory automation, marine applications, outdoor kiosks, smart parking systems, food processing, gaming & casino terminals, medical equipment, Robot and industrial control systems etc.
The standard production lead time is 7-15 business days. However, for bulk orders or highly customized projects, it may take 2-6weeks depending on complexity and specifications. We ensure fast and efficient delivery to meet your project deadlines.
We offer a 2-year standard warranty on all our standard products. Customized products usually come with a standard 1-year warranty due to their specialized nature. During the warranty period, we provide free replacement parts for repair not caused by human factors.
Yes, we support sample orders for product evaluation. Please contact us to discuss your sample requirements.
All our industrial Panel PCs, monitor, and Box PCs are CE, FCC, and RoHS certified, ensuring compliance with international safety and environmental standards.
